S3046 Radiator Valve

Short Description:

Working pressure:1.0MPa

Working temperature: -20℃≤t≤110℃

Working Medium:Water, Non-corrosive liquid, Saturated steam

Thread confirmed to ISO228


Product Detail

Product Tags

Product information :

Product name Brass Ball Valve
Sizes 1/2"~2"
Bore Full bore
Application Water, oil, and other non-corrosive liquid
Working pressure PN30 / 500Psi
Working temperature -10 to 110°C
Working durability 10,000 cycles
Quality standard EN13828, EN228-1
End Connection BSP, NPT
Features: Heavy-duty design for higher pressure
Anti-blow-out stem structure
100% leakage test for each valve
OEM production acceptable
Materials Spare Part Material
 Body Forged brass, sandblasted and nickel-plated
Bonnet Forged brass, sandblasted and nickel-plated
Ball Forged brass, polished and chrome-plated
Handle Steel chromed with plastic cover
Nut Steel
Stem Brass
Ball seat  PTFE
Packing Inner boxes in cartons, loaded in pallets
Customized design acceptable

Bore sizes for check valves:

The radiator valve is a valve used to regulate the heating of heating equipment. It is usually installed on heating equipment or heating pipes, and adjusts the flow of hot water or steam by controlling the opening and closing of valves, thereby controlling the indoor temperature. Specifically, when the indoor temperature needs to be heated, the radiator valve is opened, hot water or steam flows into the heating equipment or heating pipe through the valve, and releases heat into the room through the radiator or radiator. When the indoor temperature reaches the preset value, the radiator valve is closed to stop the heating process. There are many ways to control the radiator valve, including manual control, automatic temperature control and so on. Generally speaking, the radiator valve plays a role in controlling the indoor temperature and saving energy in the heating system, and can be adjusted according to the needs to keep the room at a comfortable temperature.

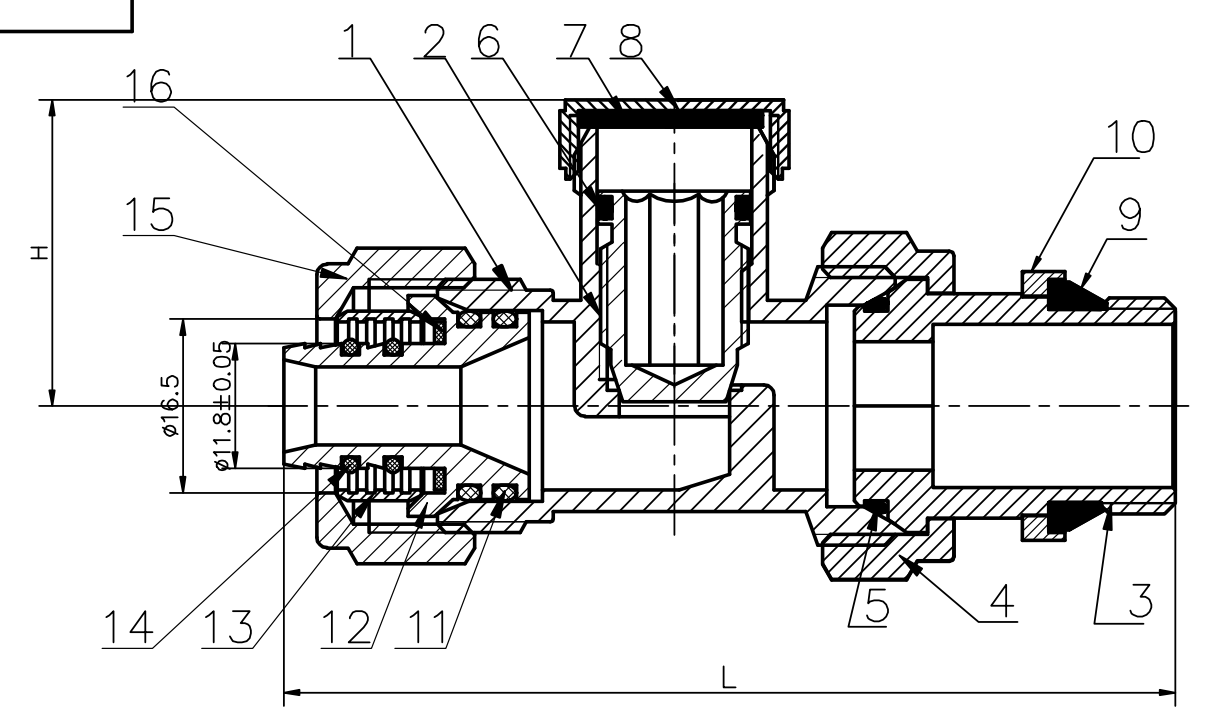

NO Component Material
1 Body Brass
2 Core Brass
3 Pipe Brass
4 Lock cap  Brass
5 O-ring EPDM
6 O-ring EPDM
7 Red paper gasket Red steel paper
8 Cover Brass
9 Gasket EPDM
10 Copper washer Brass
11 O-ring EPDM
12 Union Brass
13 Cutting Brass
14 O-ring EPDM
15 Lock cap  Brass
16 Plastic gasket ABS
SIZE L H
1/2" 85 29
S3046

Production flow of Brass Ball Valves :

59534d14e21a7864798331 (1)

Brass material Chemical composition used for brass ball valves:

59534d14e21a7864798331 (1)

Bore sizes for brass ball valves:

59534d14e21a7864798331 (1)

Available surface treatments of brass ball valves:

59534d14e21a7864798331 (1)

Packing of brass ball valves:

59534d14e21a7864798331 (1)

Testing Lab for brass ball valves:

59534d14e21a7864798331 (1)

Why choose SHANGYI as your china valves supplier:

1.rofessional valve manufacturer,with over 20 years of industry experiences.
2.Monthly production capacity of 1million sets,enables quick delivery
3.Testing each valve one by one
4.Intensive QC and on-time delivery,to make quality reliable and stable
5.Prompt responsive communications,from pre-sales to after-sales

59534d14e21a7864798331 (1)

59534d14e21a7864798331 (1)

59534d14e21a7864798331 (1)

59534d14e21a7864798331 (1)

59534d14e21a7864798331 (1)

59534d14e21a7864798331 (1)
