CHECK VALVES-S1009

Short Description:

Working pressure:2.5MPa

Working temperature: -20℃≤t≤110℃

Thread Confirmed to ISO228

Opening/closing test 10000times

Suitable for water services

Send email to us Download as PDF

Product Detail

Product Tags

Key words: Brass Check Valve

Product information :

Product name	CHECK VALVES
Sizes	1/4”-1/2",3/4”
Bore	Full bore
Application	Water, oil, and other non-corrosive liquid
Working pressure	PN16
Working temperature	-10 to 110°C
Working durability	10,000 cycles
Quality standard	EN13828, EN228-1/ ISO5208
End Connection	BSP
Features:	Heavy-duty design for higher pressure
	Anti-blow-out stem structure/O-Ring or Pressure Nut
	100% leakage test on valve before delivery
	Agents wanted and OEM acceptable
Packing	Inner boxes in cartons, loaded in pallets
Packing	Customized design acceptable

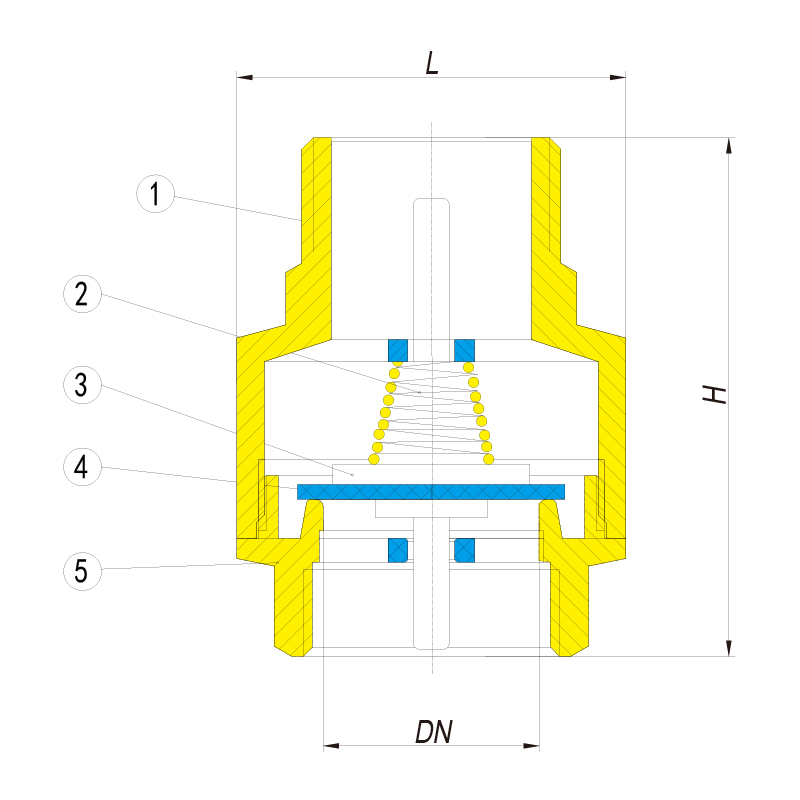

Spare Part for check valves:

NO	Component	Material
1	Body	Brass
2	Valve nut	Brass
3	Spring	Stainless
4	Disc	Brass
5	Rubber gasket	NBR
6	O-ring	NBR
7	Bonnet	Brass
8	Gasket	ABS
9	Ring	Brass
10	O-ring	NBR
11	Lock cap	Brass

Bore sizes for check valves:

SIZE	L	H	Weight	Carton
1/2"	32.5	52	153	228
3/4"	41.5	57.5	215	144
1"	48.5	66	300	96
11/4"	57.5	69	435	72
11/2"	67.5	77	650	36
2"	79.5	80	960	18

Production flow of check valves :

Brass material Chemical composition used for check valves:

Available surface treatments of check valves:

Packing of check valves:

Testing Lab for check valves:

Why choose SHANGYI as your China valves supplier:

1.rofessional valve manufacturer,with over 20 years of industry experiences.
2.Monthly production capacity of 1million sets,enables quick delivery
3.Testing each valve one by one
4.Intensive QC and on-time delivery,to make quality reliable and stable
5.Prompt responsive communications,from pre-sales to after-sales
