CHECK VALVES-S1005

Short Description:

Working pressure:2.5MPa

Working temperature: -20℃≤t≤110℃

Thread Confirmed to ISO228

Opening/closing test 10000times

Suitable for water services


Product Detail

Product Tags

Euro Brass Spring Check Valve is made of forged brass, also called non-return valve, designed to control backflow of fluid control system, the fluid is directed by disc and flows in one direction, widely used for plumbing, pumping, and pipelines.

Product information :

Product name CHECK VALVES
Sizes 1/4”-1/2",3/4”
Bore Full bore
Application Water, oil, and other non-corrosive liquid
Working pressure PN16
Working temperature -10 to 110°C
Working durability 10,000 cycles
Quality standard EN13828, EN228-1/ ISO5208
End Connection BSP
Features: Heavy-duty design for higher pressure
Anti-blow-out stem structure/O-Ring or Pressure Nut
100% leakage test on valve before delivery
Agents wanted and OEM  acceptable
Packing Inner boxes in cartons, loaded in pallets
Customized design acceptable

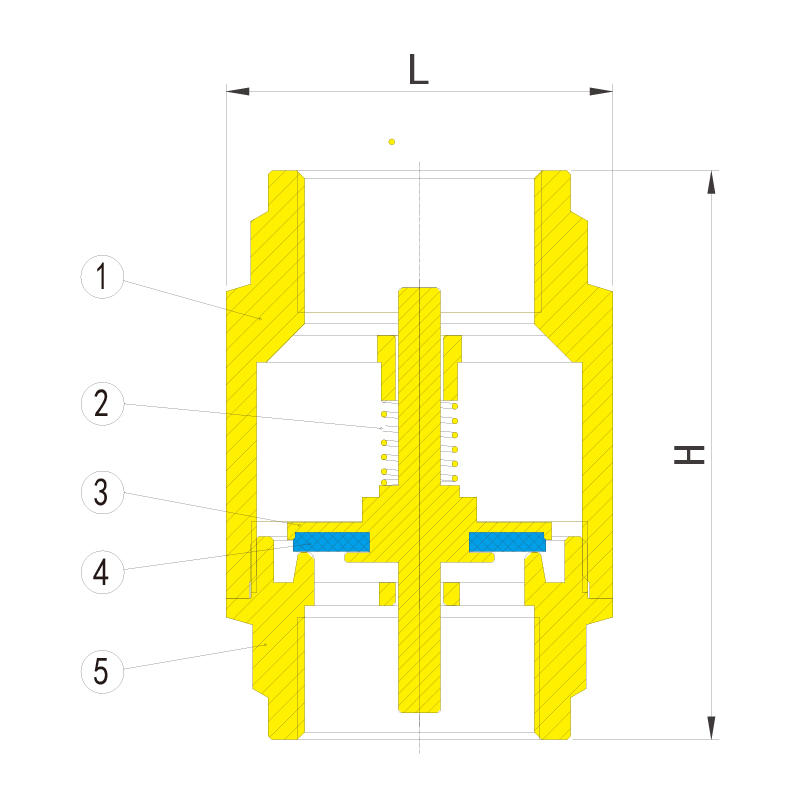

Spare Part for check valves:

NO Component Material
1 Body Brass
2 Spring Stainless
3 Disc POM
4 Rubber gasket NBR
5 Bonnet Brass

Bore sizes for check valves:

S1005-01
SIZE L H DN Weight Carton
1/2" 33.6 58.3 17 185 360
3/4" 42 64.8 22 265 180
1" 48 74.3 27.5 420 144
11/4" 59 81 33.5 650 72
11/2" 68 91.5 42 870 48
2" 86 101 53 1325 18
21/2" 118.5 125.5 75 2635 16
3" 140.5 142 92 4200 12
4" 154 154.5 99 5400 4

Production flow of check valves :

Production Process

Brass material Chemical composition used for check valves:

59534d14e21a7864798331 (1)

Available surface treatments of check valves:

Craft color

Packing of check valves:

Pack and ship

Testing Lab for check valves:

Testing Machine

Why choose SHANGYI as your China valves supplier:

1.rofessional valve manufacturer,with over 20 years of industry experiences.
2.Monthly production capacity of 1million sets,enables quick delivery
3.Testing each valve one by one
4.Intensive QC and on-time delivery,to make quality reliable and stable
5.Prompt responsive communications,from pre-sales to after-sales
