CHECK VALVES-S1001

Short Description:

Working pressure:2.5MPa

Working temperature: -20℃≤t≤110℃

Thread Confirmed to ISO228

Opening/closing test 10000times

Suitable for water services

Send email to us Download as PDF

Product Detail

Product Tags

Brass Spring Check Valve is made of forged brass, also called non-return valve, designed to control backflow of fluid control system, the fluid is directed by disc and flows in one direction, widely used for plumbing, pumping, and pipelines.

Product information :

Product name	CHECK VALVES
Sizes	1/4”-1/2",3/4”
Bore	Full bore
Application	Water, oil, and other non-corrosive liquid
Working pressure	PN16
Working temperature	-10 to 110°C
Working durability	10,000 cycles
Quality standard	EN13828, EN228-1/ ISO5208
End Connection	BSP
Features:	Heavy-duty design for higher pressure
	Anti-blow-out stem structure/O-Ring or Pressure Nut
	100% leakage test on valve before delivery
	Agents wanted and OEM acceptable
Packing	Inner boxes in cartons, loaded in pallets
Packing	Customized design acceptable

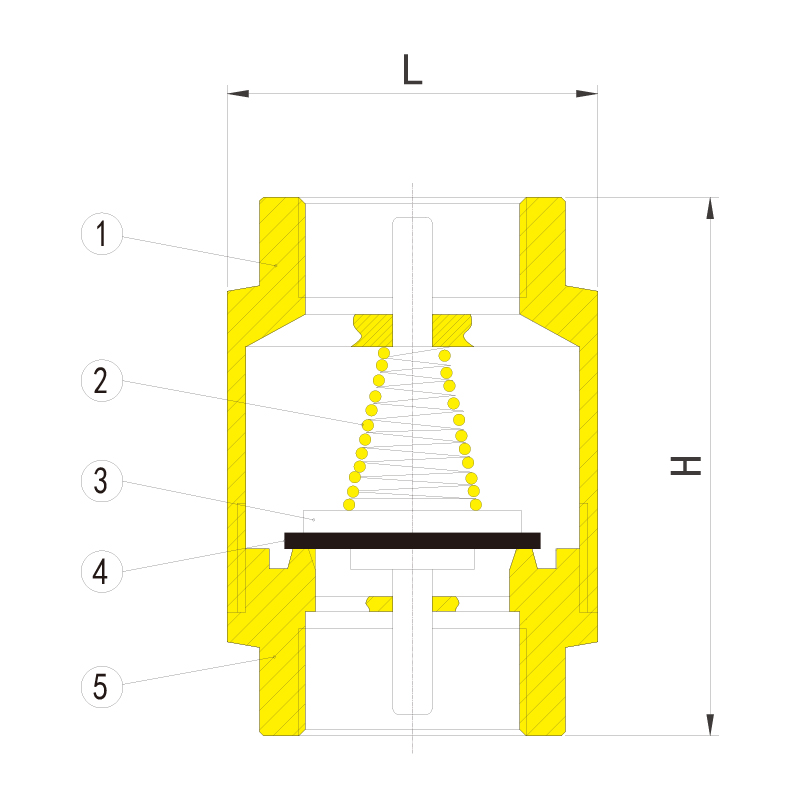

Spare Part for check valves:

NO	Component	Material
1	Body	Brass
2	Spring	Stainless
3	Disc	POM
4	Rubber gasket	NBR
5	Bonnet	Brass

Bore sizes for check valves:

SIZE	L	H	DN	Weight	Carton
1/2"	32.8	45	18	120	228
3/4"	41.5	51	22	180	144
1"	47	54	28	240	108
11/4"	57.5	57.5	37	330	72
11/2"	68	68.5	42	500	36
2"	80	72.5	55	700	18
21/2"	103	90.5	67	1550	12
3"	110	97	78	1900	12
4"	142	112	101.5	3000	6

Production flow of check valves :

Brass material Chemical composition used for check valves:

Available surface treatments of check valves:

Packing of check valves:

Testing Lab for check valves:

Why choose SHANGYI as your China valves supplier:

1.rofessional valve manufacturer,with over 20 years of industry experiences.
2.Monthly production capacity of 1million sets,enables quick delivery
3.Testing each valve one by one
4.Intensive QC and on-time delivery,to make quality reliable and stable
5.Prompt responsive communications,from pre-sales to after-sales
