BIBCOCK-S5250

Short Description:

Working pressure:1.6MPa

Working temperature: -20℃≤t≤110℃

Thread Confirmed to ISO228

Opening/closing test 20000times

Working Medium:Water

Send email to us Download as PDF

Product Detail

Product Tags

Brass Bibcock is a kind of brass ball valve, made of forged brass and operated with handle, also named brass garden taps, widely used for plumbing, heating, and pipelines.

Product information :

Product name	BIBCOCK
Sizes	1/2"
Bore	Full bore
Application	Water, oil, and other non-corrosive liquid
Working pressure	PN16
Working temperature	-10 to 110°C
Working durability	20,000 cycles
Quality standard	EN13828, EN228-1/ ISO5208
End Connection	BSP
Features:	Heavy-duty design for higher pressure
	Anti-blow-out stem structure/O-Ring or Pressure Nut
	100% leakage test on valve before delivery
	Agents wanted and OEM acceptable
Packing	Inner boxes in cartons, loaded in pallets
Packing	Customized design acceptable

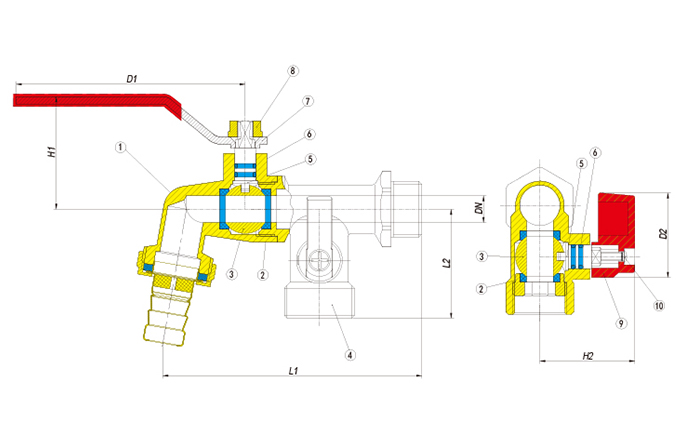

Spare Part for bibcock:

NO	Component	Material
1	Body	Brass
2	Seat	PTFE
3	Ball	Brass
4	Bonnet	Brass
5	Stem	Brass
6	O-ring	NBR
7	Handle	Aluminium
8	Screw	Stainless steel

Bore sizes for bibcock:

SIZE	L1	H1	DN	D1	L2	H2	D2	Weight	Carton
1/2"	96	42	10	85	40.5	35.5	31.3	343	100

Production flow of Brass Ball Valves :

Brass material Chemical composition used for brass ball valves:

Available surface treatments of brass ball valves:

Packing of brass ball valves:

Testing Lab for brass ball valves:
