BIBCOCK-S5203

Short Description:

Main Material：Forged Brass

Working pressure:1.6MPa

Working temperature: -20℃≤t≤110℃

Thread Confirmed to ISO228

Opening/closing test 20000times

Suitable for water services

Send email to us Download as PDF

Product Detail

Product Tags

Brass Bibcock is a kind of brass ball valve, made of forged brass and operated with handle, also named brass garden taps, widely used for plumbing, heating, and pipelines.

Product information :

Product name	BIBCOCK
Sizes	1/2",3/4”
Bore	Full bore
Application	Water, oil, and other non-corrosive liquid
Working pressure	PN16
Working temperature	-10 to 110°C
Working durability	20,000 cycles
Quality standard	EN13828, EN228-1/ ISO5208
End Connection	BSP
Features:	Heavy-duty design for higher pressure
	Anti-blow-out stem structure/O-Ring or Pressure Nut
	100% leakage test on valve before delivery
	Agents wanted and OEM acceptable
Packing	Inner boxes in cartons, loaded in pallets
Packing	Customized design acceptable

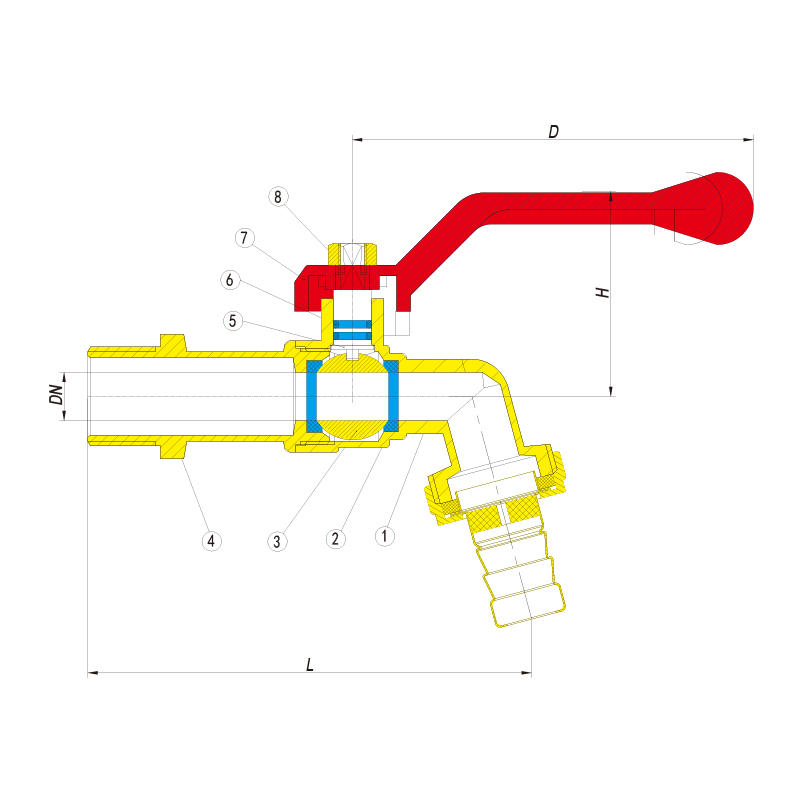

Spare Part for bibcock

NO	Component	Material
1	Body	Brass
2	Seat	PTFE
3	Ball	Brass
4	Bonnet	Brass
5	Stem	Brass
6	O-ring	NBR
7	Handle	Aluminium
8	Nut	Steel

Bore sizes for bibcock

SIZE	L	H	DN	D	Weight	Carton
1/2"x3/4"	92	42	10	84.5	165	84
3/4"x1"	99	43	11.8	84.5	270	48

Production flow of bibcock :

Brass material Chemical composition used for bibcock:

Available surface treatments of bibcock:

Packing of bibcock:

Testing Lab for bibcock:
