| Product name |
Brass Ball Valve |
| Sizes |
1" |
| Bore |
Full bore |
| Application |
Water and other non-corrosive liquid |
| Working pressure |
PN16 |
| Working temperature |
-10 to 110°C |
| Quality standard |
EN13828, EN228-1/ ISO5208 |
| End Connection |
BSP |
| Features: |
Heavy-duty design for higher pressure |
| Anti-blow-out stem structure/O-Ring or Pressure Nut |
| 100% leakage test on valve before delivery |
| Agents wanted and OEM acceptable |
| Packing |
Inner boxes in cartons, loaded in pallets |
| Customized design acceptable |

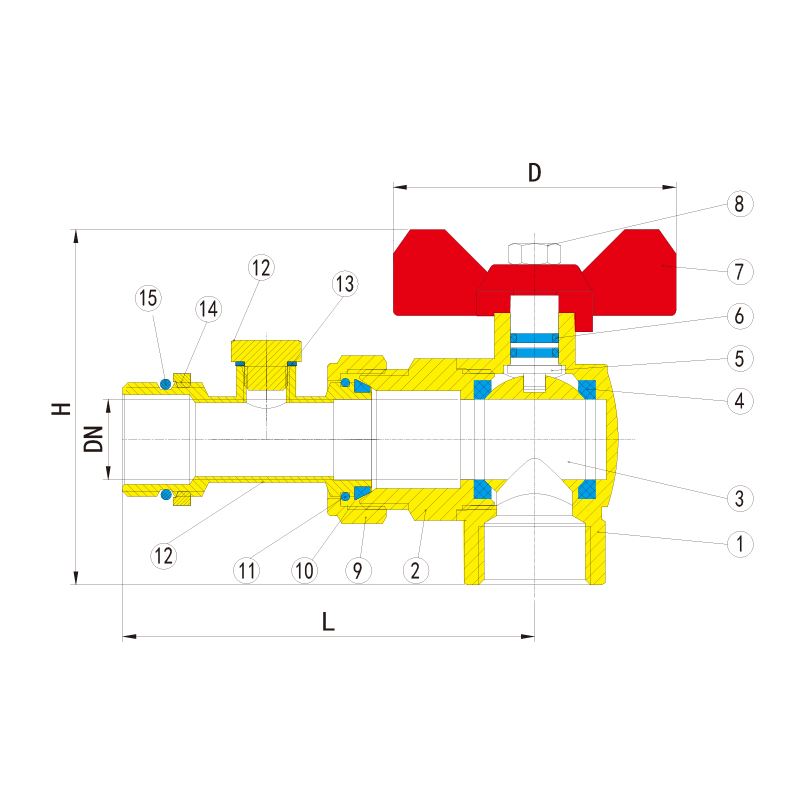

Spare Part for brass ball valves:
| NO |
Component |
Material |
| 1 |
Body |
Brass |
| 2 |
Bonnet |
Brass |
| 3 |
Ball |
Brass |
| 4 |
Seat |
PTFE |
| 5 |
Stem |
Brass |
| 6 |
O-ring |
NBR |
| 7 |
Butterfly handle |
Aluminium |
| 8 |
Nut |
Steel |
| 9 |
Lock cap |
Brass |
| 10 |
Gasket |
NBR |
| 11 |
Clip |
S.S304 |
| 12 |
Plug |
Brass |
| 13 |
Gasket |
PTFE |
| 14 |
Fix Nut |
Brass |
| 15 |
O-ring |
NBR |
Bore sizes for brass ball valves:
| SIZE |
L |
H |
DN |
D |
Weight |
Carton |
| 1" |
126.3 |
101 |
49.5 |
19 |
68 |
588 |
Production flow of Brass Ball Valves :
Brass material Chemical composition used for brass ball valves:
Available surface treatments of brass ball valves:
Packing of brass ball valves:
Testing Lab for brass ball valves:
Why choose SHANGYI as your China valves supplier:
1.rofessional valve manufacturer,with over 20 years of industry experiences.
2.Monthly production capacity of 1million sets,enables quick delivery
3.Testing each valve one by one
4.Intensive QC and on-time delivery,to make quality reliable and stable
5.Prompt responsive communications,from pre-sales to after-sales
