BALL VALVES-S5336

Short Description:

Working pressure:3.0MPa

Working temperature: -20℃≤t≤110℃

Thread Confirmed to ISO228  (equivalent to DIN 259 and BS2779)

Opening/closing test 20000times

Working Medium:Water,Oil


Product Detail

Product Tags

Key words: Brass Ball Valves, Forged Brass Ball Valves, Nickel-plated Brass Ball Valves, Brass Valves, Ball Valves, Valves

Product information :

Product name BALL VALVES
Sizes 1/2"-2"
Bore Full bore
Application Water, oil, and other non-corrosive liquid
Working pressure PN30
Working temperature -10 to 110°C
Working durability 20,000 cycles
Quality standard EN13828, EN228-1/ ISO5208
End Connection BSP
Features: Heavy-duty design for higher pressure
Anti-blow-out stem structure/O-Ring or Pressure Nut
100% leakage test on valve before delivery
Agents wanted and OEM  acceptable
Packing Inner boxes in cartons, loaded in pallets
Customized design acceptable

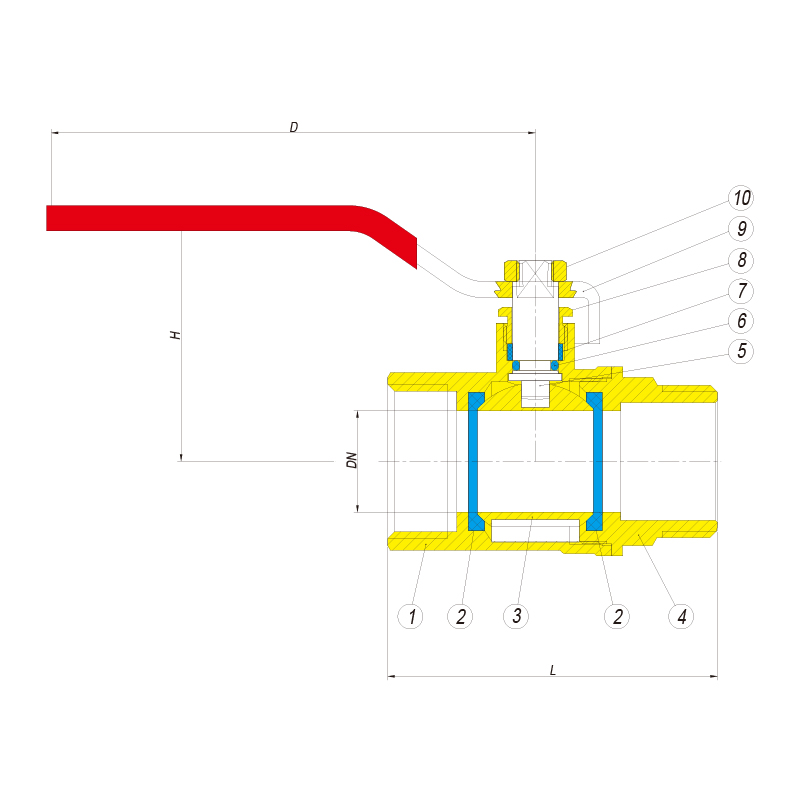

Bore sizes for brass ball valves:

NO Component Material
1 Body Brass
2 Seat PTFE
3 Ball Brass
4 Bonnet Brass
5 Stem Brass
6 O-ring NBR
7 Handle Steel
8 Nut Steel

Bore sizes for brass ball valves:

SIZE L H DN D Weight Carton
1/2" 55.5 4A6 13.5 82 170 120
3/4" 60 49 17.5 82 235 96
1" 73.5 54.5 21.5 105 390 64
11/4" 81.5 66.5 28 118 573 32
11/2" 94.5 72.5 37 118 788 16
2" 108.5 84.7 44 150 1280 16

Production flow of Brass Ball Valves :

S5336-01

Production Process

Brass material Chemical composition used for brass ball valves:

59534d14e21a7864798331 (1)

Available surface treatments of brass ball valves:

Craft color

Packing of brass ball valves:

Pack and ship

Testing Lab for brass ball valves:

Testing Machine

Why choose SHANGYI as your China valves supplier:

1.rofessional valve manufacturer,with over 20 years of industry experiences.
2.Monthly production capacity of 1million sets,enables quick delivery
3.Testing each valve one by one
4.Intensive QC and on-time delivery,to make quality reliable and stable
5.Prompt responsive communications,from pre-sales to after-sales
