| Product name |
BALL VALVES |
| Sizes |
1"1/2"3/4" |
| Bore |
Full bore |
| Application |
Water and other non-corrosive liquid |
| Working pressure |
PN16 |
| Working temperature |
-10 to 110°C |
| Quality standard |
EN13828, EN228-1/ ISO5208 |
| End Connection |
BSP |
| Features: |
Heavy-duty design for higher pressure |
| Anti-blow-out stem structure/O-Ring or Pressure Nut |
| 100% leakage test on valve before delivery |
| Agents wanted and OEM acceptable |
| Packing |
Inner boxes in cartons, loaded in pallets |
| Customized design acceptable |

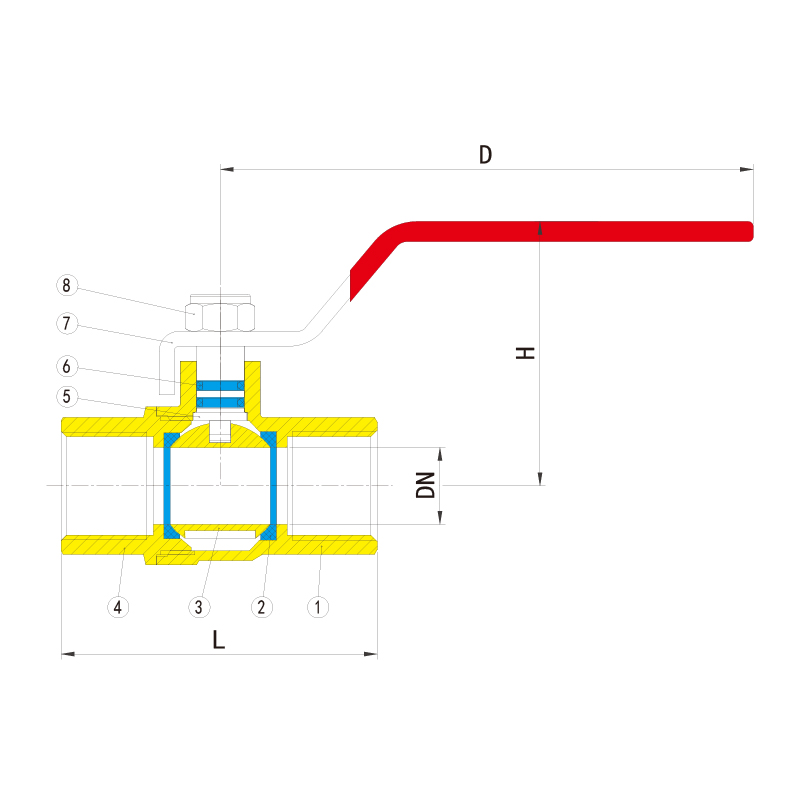

Bore sizes for brass ball valves:
| NO |
Component |
Material |
| 1 |
Body |
Brass |
| 2 |
Seat |
PTFE |
| 3 |
Ball |
Brass |
| 4 |
Bonnet |
Brass |
| 5 |
Stem |
Brass |
| 6 |
O-ring |
NBR |
| 7 |
Handle |
Steel |
| 8 |
Nut |
Steel |
Bore sizes for brass ball valves:
| SIZE |
L |
H |
DN |
D |
Weight |
Carton |
| 1/2" |
61 |
51 |
1A4.8 |
99 |
205 |
120 |
| 3/4" |
69.4 |
53 |
19 |
99 |
285 |
84 |
| 1" |
82 |
65 |
25 |
122 |
490 |
60 |
| 11/4" |
98 |
78 |
32 |
144 |
750 |
24 |
| 11/2" |
105.4 |
83 |
40 |
144 |
1060 |
24 |
| 2" |
127 |
96 |
50 |
160 |
1620 |
12 |
Production flow of Brass Ball Valves :
Brass material Chemical composition used for brass ball valves:
Available surface treatments of brass ball valves:
Packing of brass ball valves:
Testing Lab for brass ball valves:
Why choose SHANGYI as your China valves supplier:
1.rofessional valve manufacturer,with over 20 years of industry experiences.
2.Monthly production capacity of 1million sets,enables quick delivery
3.Testing each valve one by one
4.Intensive QC and on-time delivery,to make quality reliable and stable
5.Prompt responsive communications,from pre-sales to after-sales
