Brass Filter Ball Valve is made of forged brass, with function of adjust flow rate, designed to filter the impurities in fluid control system, the fluid flows in one direction and filter by s/s filter screen of the valve.
| Product name |
BALL VALVES |
| Sizes |
1"1/2"3/4" |
| Bore |
Full bore |
| Application |
Water and other non-corrosive liquid |
| Working pressure |
PN16 |
| Working temperature |
-10 to 110°C |
| Quality standard |
EN13828, EN228-1/ ISO5208 |
| End Connection |
BSP |
| Features: |
Heavy-duty design for higher pressure |
| Anti-blow-out stem structure/O-Ring or Pressure Nut |
| 100% leakage test on valve before delivery |
| Agents wanted and OEM acceptable |
| Packing |
Inner boxes in cartons, loaded in pallets |
| Customized design acceptable |
Bore sizes for brass ball valves:

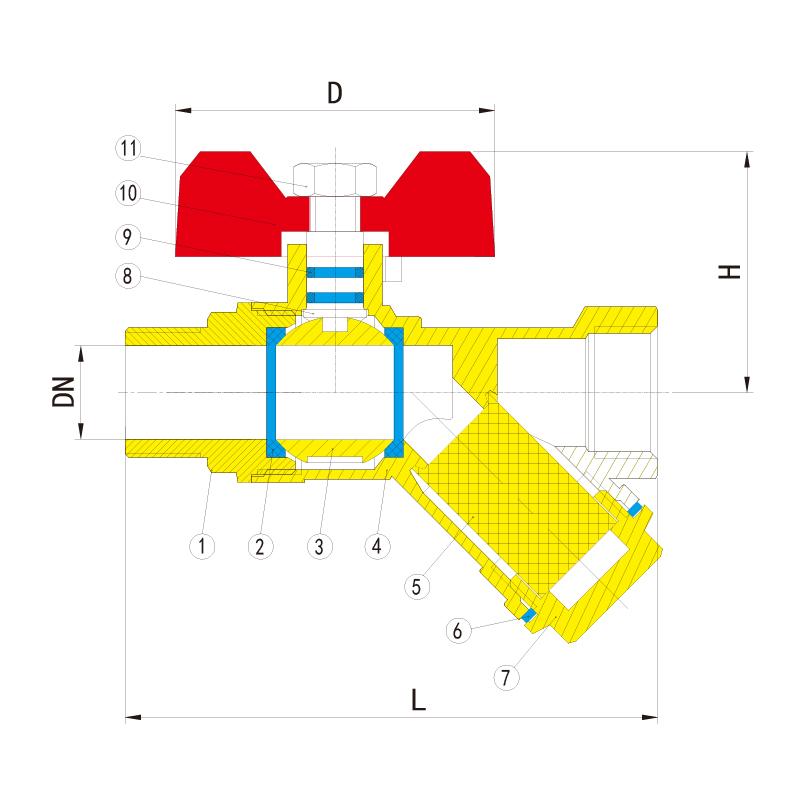

| NO |
Component |
Material |
| 1 |
Bonnet |
Brass |
| 2 |
Seat |
PTFE |
| 3 |
Ball |
Brass |
| 4 |
Body |
Brass |
| 5 |
Fillter |
Stainless steel |
| 6 |
Gasket |
PTFE |
| 7 |
Plug |
Brass |
| 8 |
Stem |
Brass |
| 9 |
O-ring |
NBR |
| 10 |
Handle |
ALL |
| 11 |
Nut |
Steel |
Bore sizes for brass ball valves:
| SIZE |
L |
H |
DN |
D |
Weight |
Carton |
| 1/2" |
84.5 |
38 |
14.8 |
52.5 |
251 |
108 |
| 3/4" |
99.5 |
42 |
19 |
52.5 |
358 |
60 |
| 1" |
113.5 |
49 |
24 |
68.5 |
560 |
48 |
Production flow of Brass Ball Valves :
Brass material Chemical composition used for brass ball valves:
Available surface treatments of brass ball valves:
Packing of brass ball valves:
Testing Lab for brass ball valves:
Why choose SHANGYI as your China valves supplier:
1.rofessional valve manufacturer,with over 20 years of industry experiences.
2.Monthly production capacity of 1million sets,enables quick delivery
3.Testing each valve one by one
4.Intensive QC and on-time delivery,to make quality reliable and stable
5.Prompt responsive communications,from pre-sales to after-sales
